Item's Detail

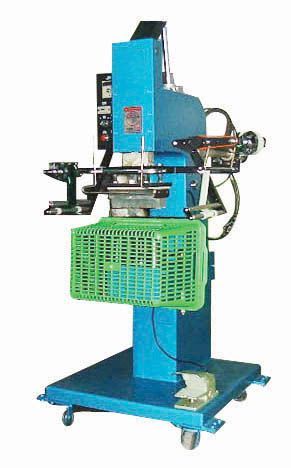

Item Name	AC5-BOX Air Operating Auto Hot Stamping Machine
Item Code	AC5-BOX
Brand Name	CME
Color	Blue
Description	CHARACTERISTICS : Specially designed for small and medium hot stamping mark. FC 25 structure is steel casting-never deformed & good lasting. Cylinder connecting toggle link and spindle system fine precision & silent mechanical motion. 3 timer operating system-time for pressure time, delaying & foil rolling which can be easily adjustable with accuracy & high precision. Special design for foil rolling system-easily adjustable and accuracy on length. Single toggle link design with fine precision up to 5000 kg pressure & less friction loss. Adaptable to other accessories & automatic production. Special design modified heater temperature up to 400 C with embossing affect. USAGE : Suitable for medium & Big hot-stamping mark like Plastic Tray, Plastic Basket, Plastic Box, PVC Box, Wood Box, etc.
Specification	Maximum Pressure - 5000 kg Impression Area - 120 x 180mm or 200 x 270mm Maximum Head Stroke - 70mm Depth of Throat - 300mm Maximum Opening - 300mm Work Table - 380 x 450mm Foil Rolling Device - 0~400mm Net Weight - 360 kg Machine Size WxLxH(cm) - 80x70x150 Packing Weight - 400 kg Packing Dimension WxLxH(cm) - 95x95x160
